BLACKMAGIC DESIGN DeckLink Duo 2 Mini Capture And Playback Card (BDLKDUO2LP)

$96.99

SKU: BLMD-BDLKDUO2LP Categories: Camera & Video, Hobbies, Sports & Hobbies Tag: Blackmagic Design

Efficient and effective customer service, online.
Shop with Confidence, Pay Safely
Experience the Best Quality
Unbeatable Quality Guaranteed

Features of BLACKMAGIC DESIGN DeckLink Duo 2 Mini BDLKDUO2LP

Mini SD/HD/3G-SDI Input/Output
PCIe Interface
1080p60 4:4:4 by Single-Link mini 3G-SDI
10/12-Bit Processing
Down/Up/Cross Conversions
Mac OS X, Windows, and Linux Compatible

Product Info for BLACKMAGIC DESIGN DeckLink Duo 2 Mini BDLKDUO2LP

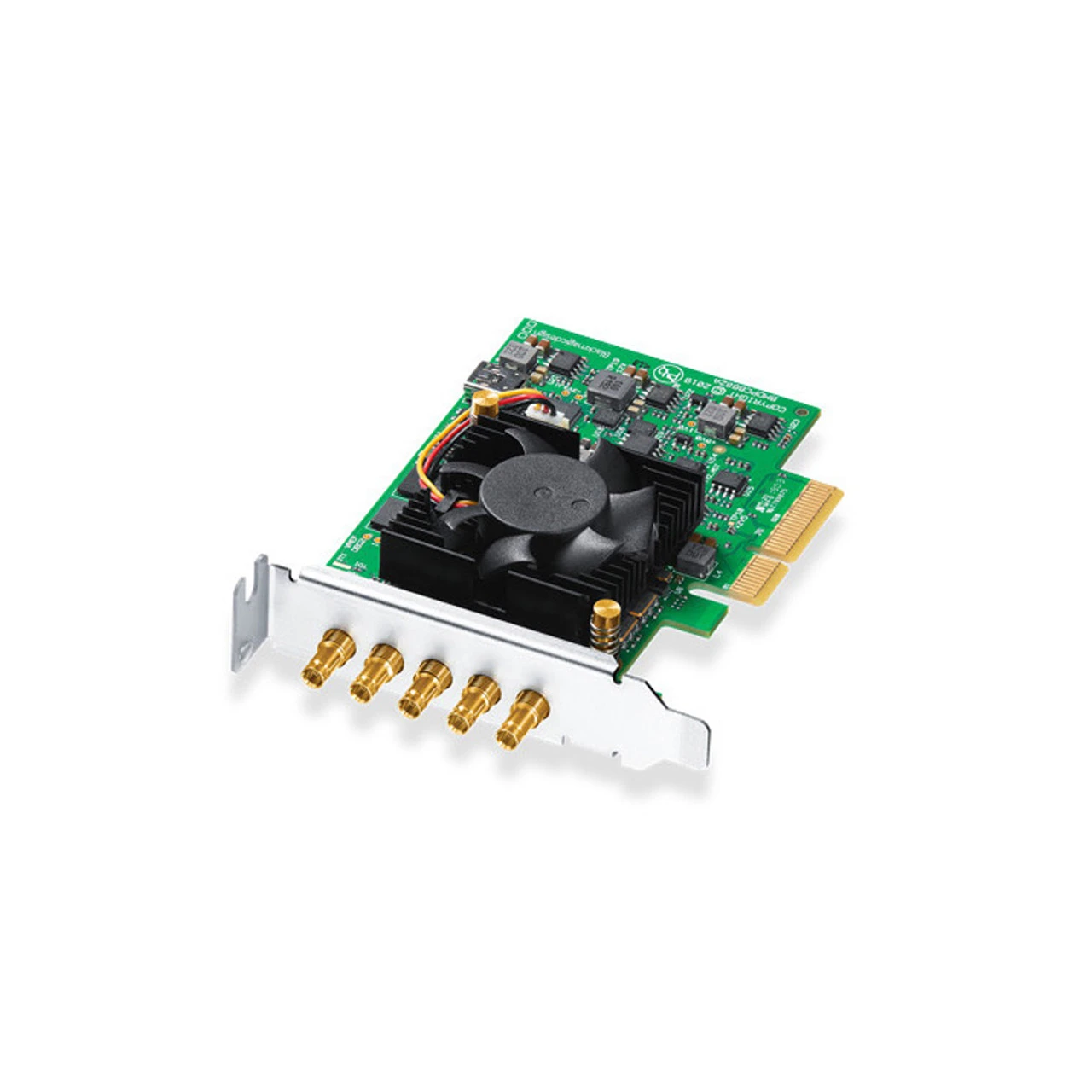

Ingest and play back high-resolution video and audio for digital signage, real-time capture, or media player applications with the BLACKMAGIC DESIGN DeckLink Duo 2 Mini Capture and Playback Card (BDLKDUO2LP). The Duo 2 Mini is a low-profile PCIe card that features four bidirectional mini BNC SDI inputs/outputs. These multi-rate connections accept 3G/HD/SD-SDI input and output signals, providing support for resolutions from SD to HD 1080p60. Additionally, the DeckLink Duo 2 Mini includes a reference input and supports 16 channels of 48 kHz 24-bit audio.

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more.

Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.

GritrOutdoors is an authorized Blackmagic Design dealer

View AllClose

Supported Operating Systems	macOS 10.13, 10.14 or Later Windows 7, 8.1, 10 (All 64-Bit) Linux
SDI Video Sampling	8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
Length, in	3.9"
Relative Humidity (non-condensing)	0 to 90%
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Temperature	41 to 104°F / 5 to 40°C
Certifications	FCC, CE, and C-Tick
Power Consumption	10 W
SDI Metadata Support	RP 188/SMPTE 12M-2 and Closed Captioning
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
SDI Color Precision	8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
Inputs/Outputs	4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD) 1 x Reference In
Color Space	Rec. 601, Rec. 709
Conversion Modes	Playback: 720p to 1080p, 1080p to 720p Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom) Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9) Color Space Conversion: Hardware-Based, Real-Time
Supported Codecs	AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
Audio Sample Rate	24-Bit, 48 kHz
Video Support	HD: 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 50, 59.94, 60 720p: 50, 59.94, 60 SD: 525i: 59.94 NTSC 625i: 50 PAL
Audio Channels	16 x Embedded, HD and SD (Input and Output)
Computer Interface	PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
Sync Input	Tri-Sync or Black Burst
Weight, oz	3.1
