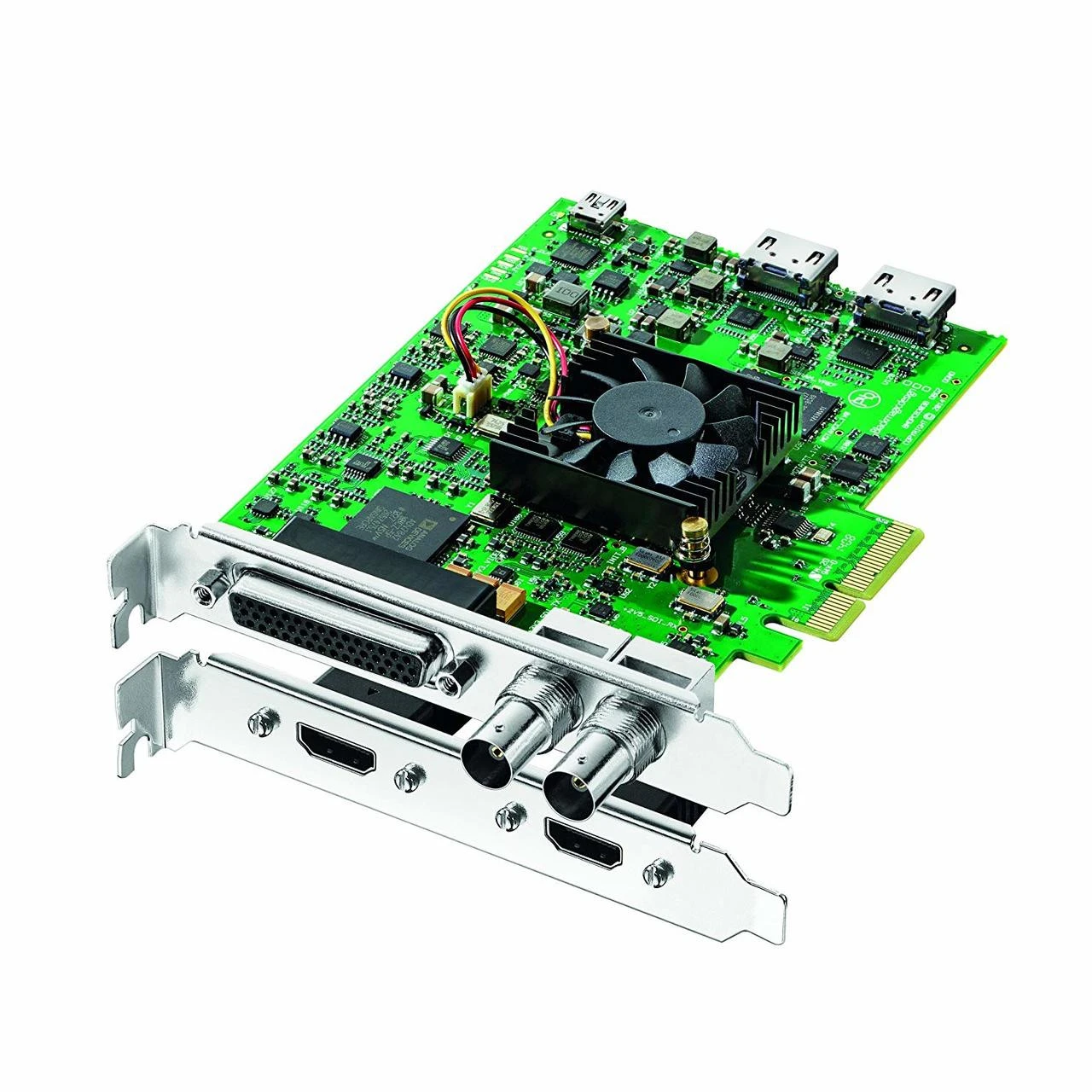

BLACKMAGIC DESIGN DeckLink Studio 4K Capture & Playback Card (BDLKSTUDIO4K)

Features of BLACKMAGIC DESIGN DeckLink Studio 4K BDLKSTUDIO4K

• PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
• Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
• 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
• 10-bit, 4:4:4 1080p by single-link 6G-SDI
• 8-bit RBG / 10-bit YUV HDMI output
• HD to SD down-conversion
• SD to HD up-conversion
• Hardware cross conversion between 720p and 1080p on playback
• RS-422 deck control
• Internal SD keying

Product Info for BLACKMAGIC DESIGN DeckLink Studio 4K BDLKSTUDIO4K

If you work with a wide range of analog video and audio gear and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! BlackMagic Design DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, black burst and tri-sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter. Perform editing, paint and broadcast design and more with the ultimate future proof design! Perfect for Post Production SD, HD, 3D and Ultra HD 4K Work with any video format and resolution that you need! Capture from cameras, decks and live feeds directly into editing, effects and design software applications. Supports either file or tape based workflows to precisely deliver perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even video projectors. Highest Quality Connections It features the highest quality connections so you get pristine video and audio quality and can connect to the widest range of professional SDI equipment. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, 2 channels of AES/EBU audio and 4 channels of balanced analog audio in and out.

GritrOutdoors is an authorized Blackmagic Design dealer
