BLACKMAGIC DESIGN GPI And Tally Interface (SWTALGPI8)
$96.99
- Efficient and effective customer service, online.
- Shop with Confidence, Pay Safely
- Experience the Best Quality
- Unbeatable Quality Guaranteed
Features of BLACKMAGIC DESIGN GPI and Tally Interface SWTALGPI8
- Displays Tallies for Video Signals
- For ATEM Switchers / Videohub Routers
- Connects with Multiple Interfaces
- Indicates On-air Status
- 8 Contact Closure Inputs & Outputs
- 8 contact closure inputs & 8 contact closure outputs
Product Info for BLACKMAGIC DESIGN GPI and Tally Interface SWTALGPI8

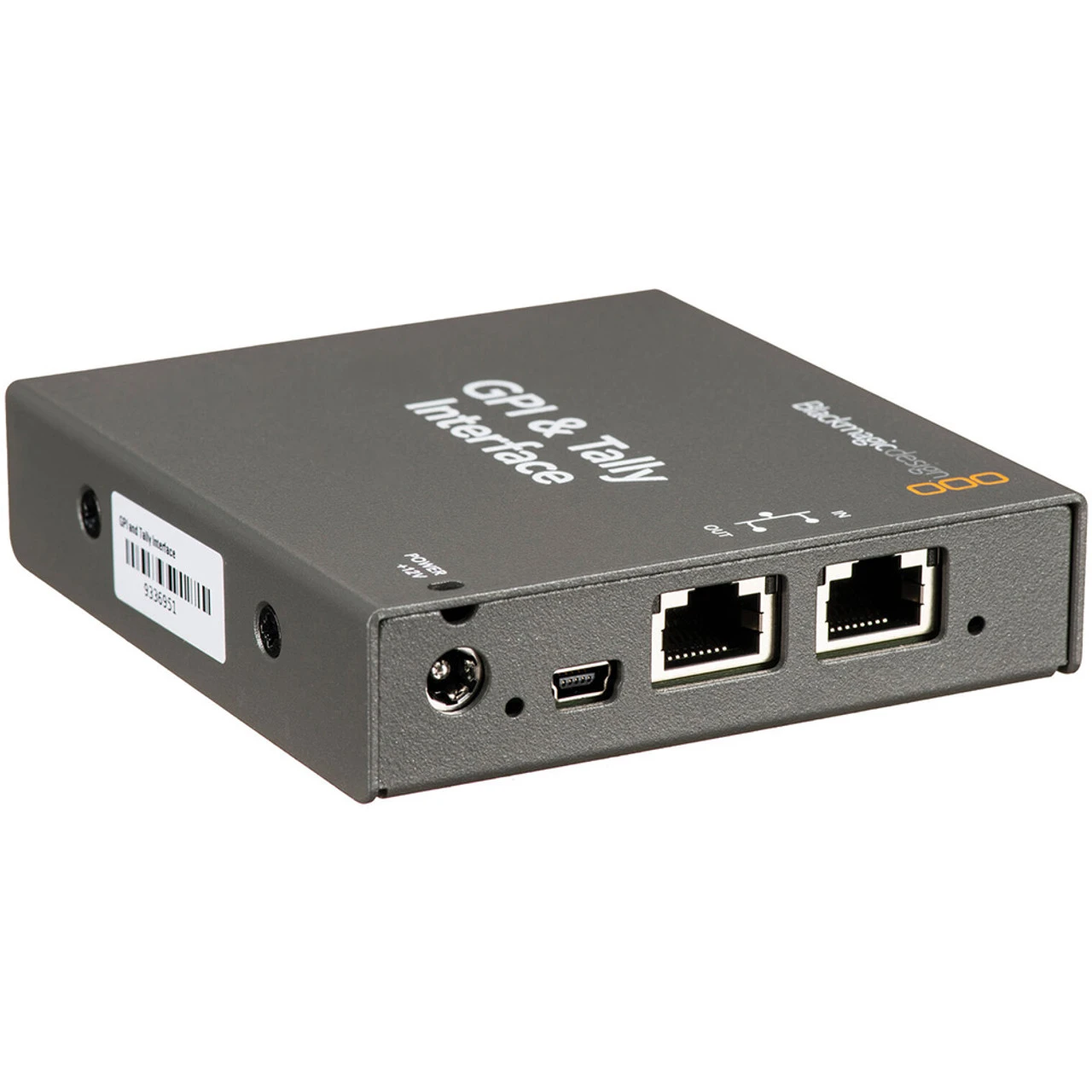

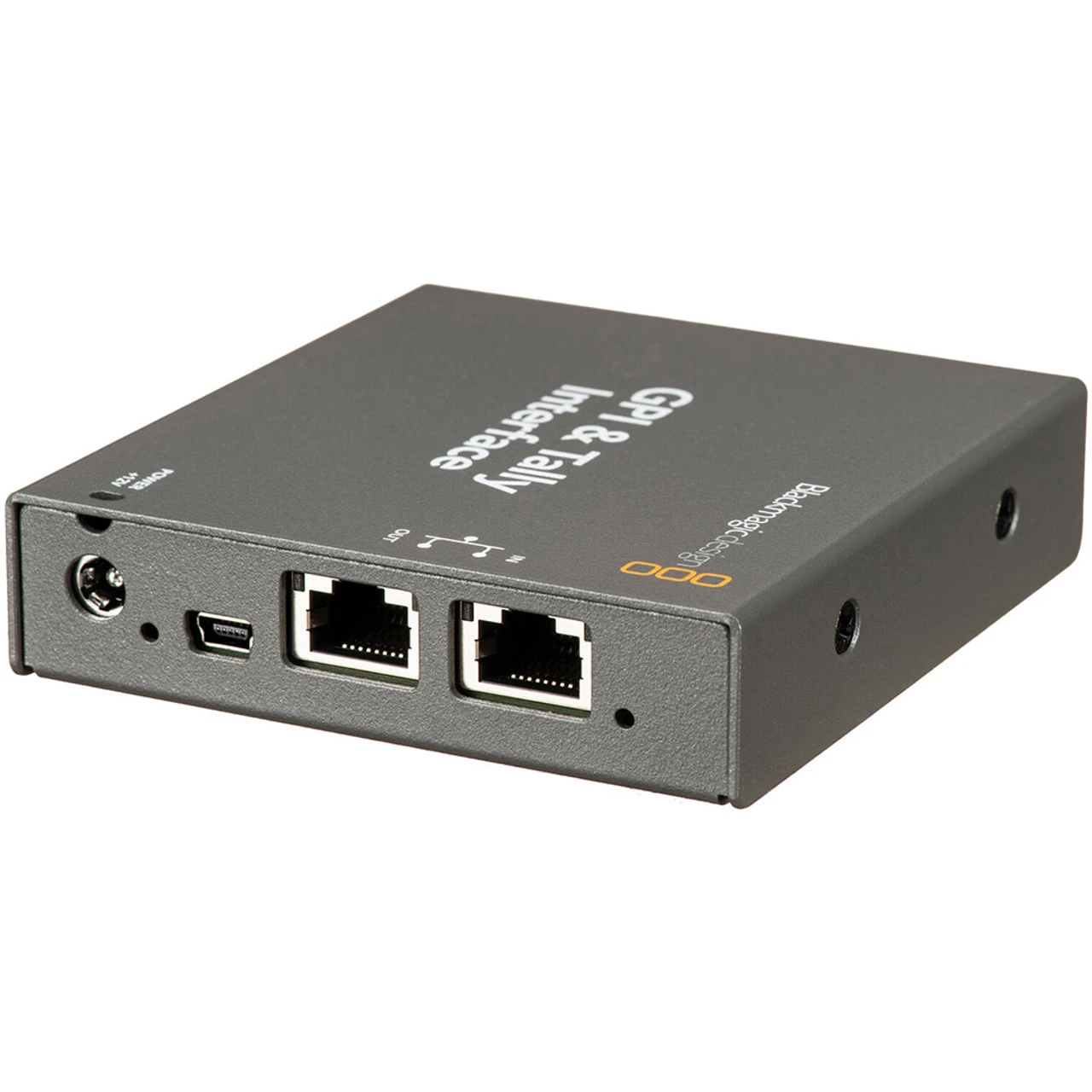

The Blackmagic Design Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
GritrOutdoors is an authorized Blackmagic Design dealer
View AllClose
| Connections | dd |
|---|---|

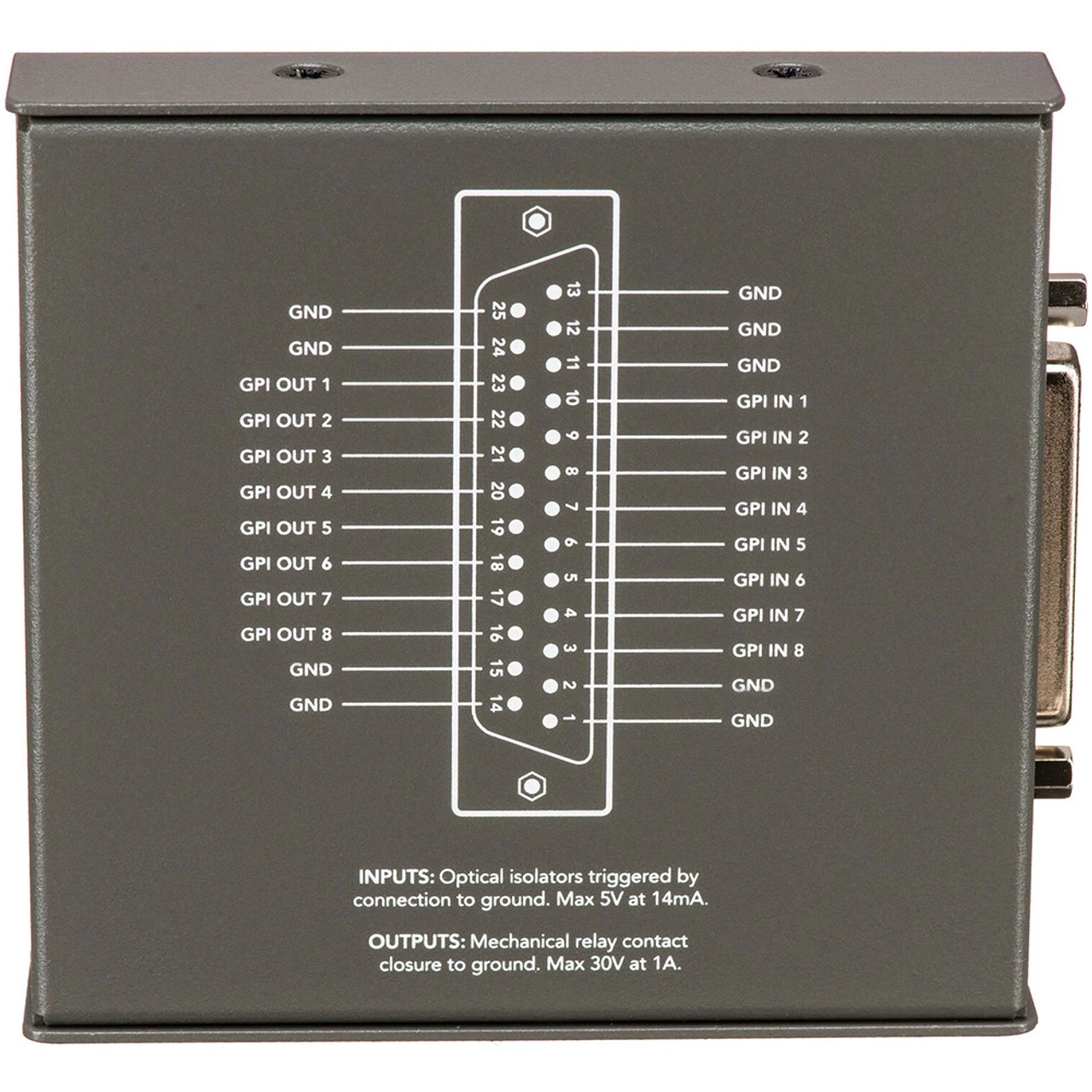

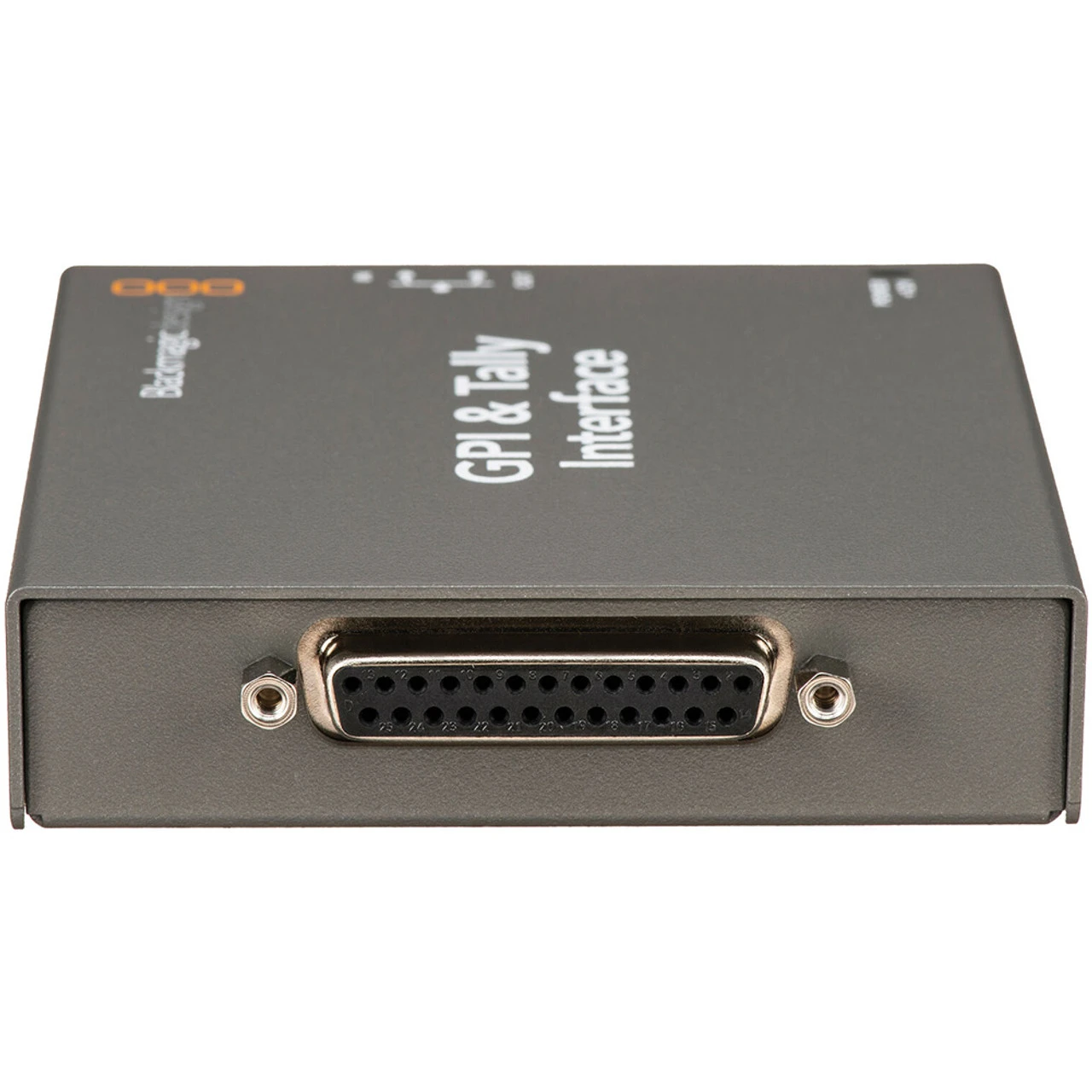

| Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
| Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
| Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
| Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| Extras |
|
| Software Included | Configured via ATEM Switcher utility |
| Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
| Operating System | Microsoft Windows 7 and Apple Mac OS X |
| Power Supply | 12 V power supply included with international socket adapters for all countries |
