BLACKMAGIC DESIGN Mini Converter Audio To SDI 4K (CONVMCAUDS4K)
$98.99
- Efficient and effective customer service, online.
- Shop with Confidence, Pay Safely
- Experience the Best Quality
- Unbeatable Quality Guaranteed
Features of BLACKMAGIC DESIGN Converter Audio to SDI CONVMCAUDS4K
- Embeds Audio into SDI Signal
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Redundant SDI Input
- 4 Analog or 8 AES/EBU Audio Channels
- Control via DIP Switches or Software
- Single Link 6G-SDI Input
- Automatic Input Signal Detection
- 4x 1/4″ Audio Jacks
- 24-Bit, 48 kHz Audio
- 12V Universal Power Supply Included
Product Info for BLACKMAGIC DESIGN Converter Audio to SDI CONVMCAUDS4K

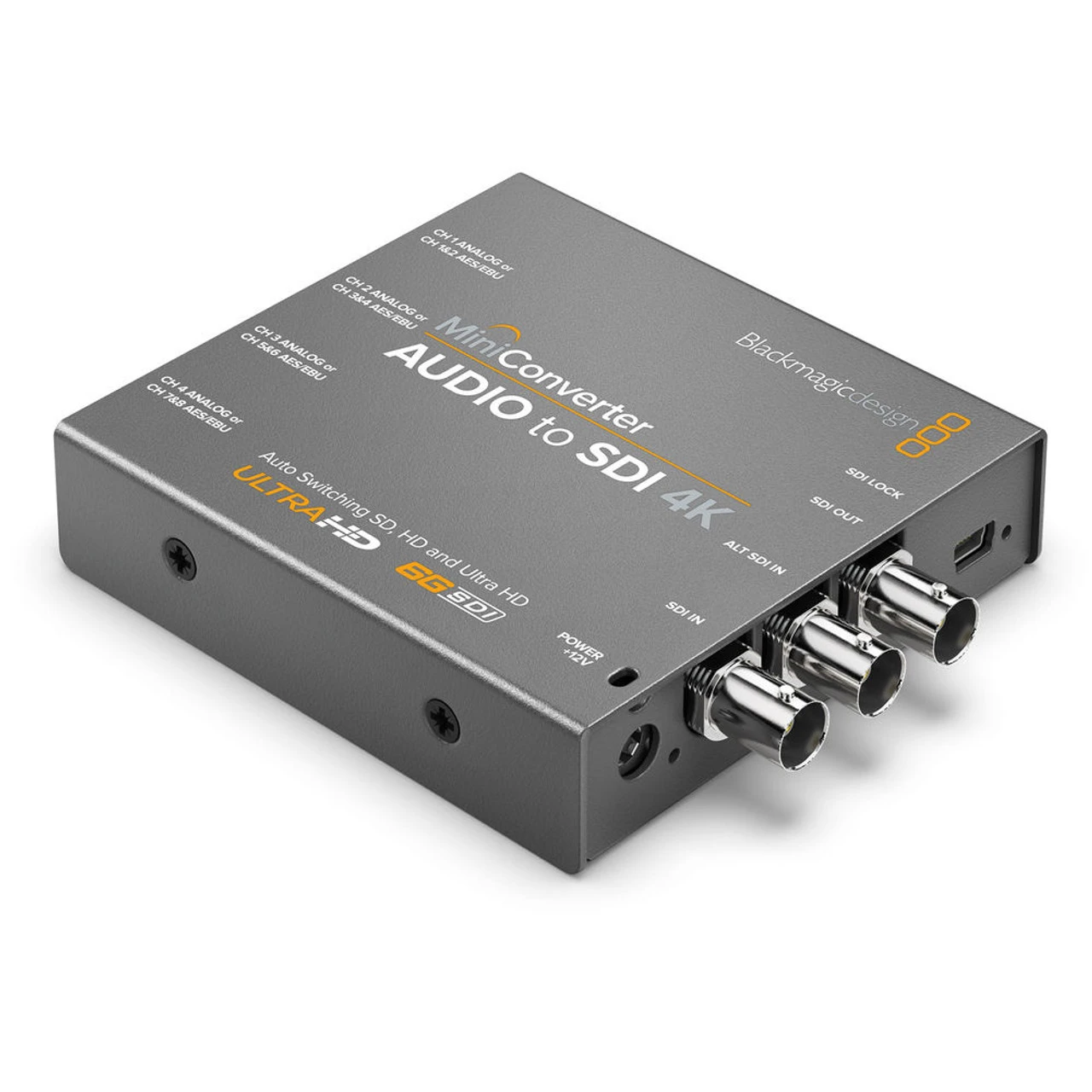

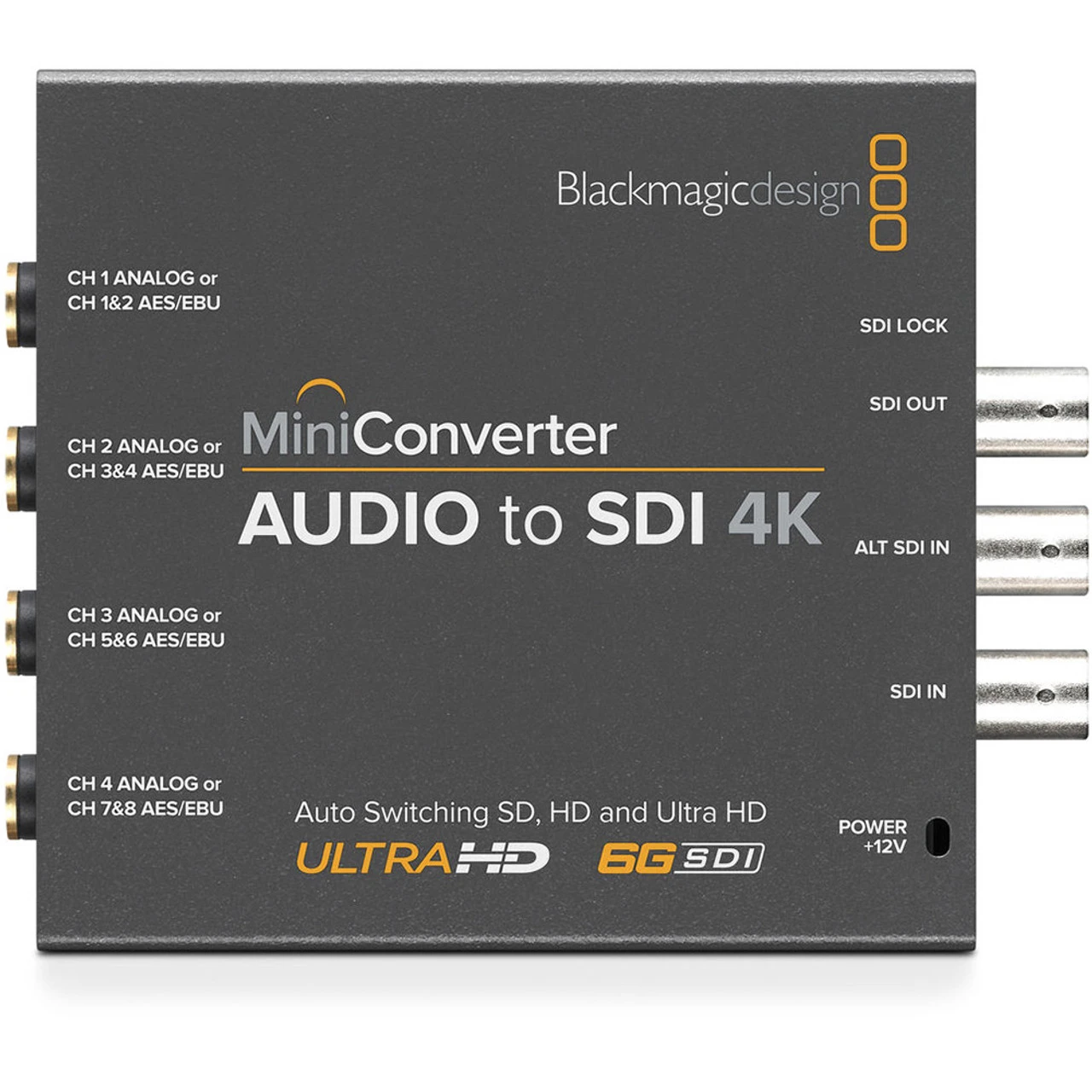

The Mini Converter Audio to SDI 4K from Blackmagic Design allows you to embed four channels of analog audio or eight channels of AES/EBU digital audio into any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840×2160) and DCI 4K (4096×2160), and provides four 1/4″ audio jack connectors for inputting and embedding your analog or digital audio channels. The SDI signal with embedded audio is output over a single 6G-SDI connector, with the resolution and frame rate matching the original input source.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

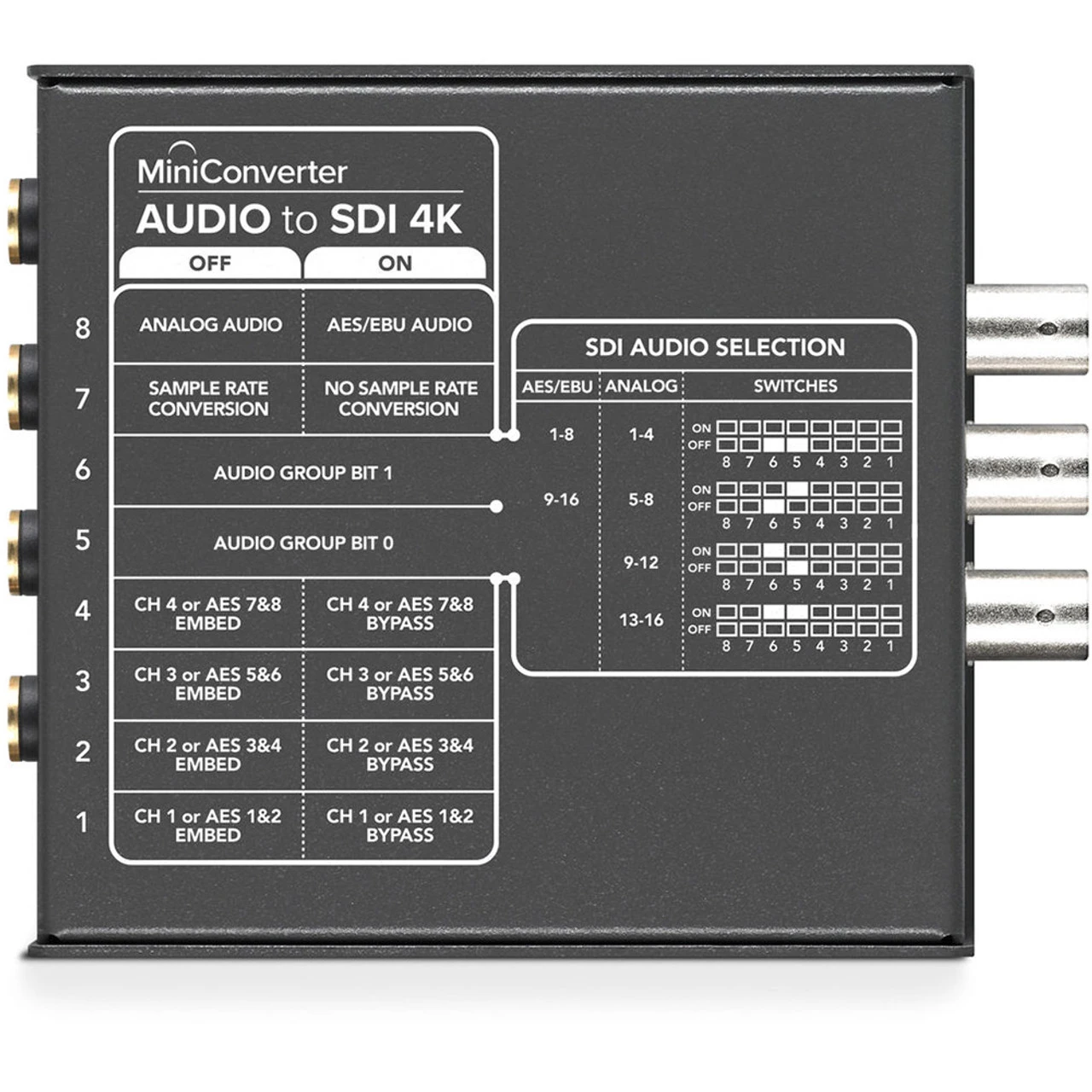

The Mini Converter’s settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12 VDC power supply is included with international socket adapters.
GritrOutdoors is an authorized Blackmagic Design dealer
View AllClose
| SDI Video Input | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
|---|---|
| SDI Color Space | YUV, RGB |
| Dimensions | 4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm) |
| Relative Humidity | 0 to 90% non-condensing |
| Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
| Operating Temperature | 32 to 104° F (0 to 40 ° C) |
| Operational Voltage Range | 12 to 31 VDC |
| Power Consumption | 8.4 W |
| Power Supply | 12 VDC |
| Firmware Upgradeable | Via USB 2.0 |
| Settings Control | DIP switches or USB software for Mac OS X and Windows |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Video Output | 1 x SD/HD/3G/6G-SDI |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| SDI Video Rates | Switchable between SD, HD, 3G, and 6G-SDI |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
| Format Support | SD NTSC 525/29.97 and 525/23.98 PAL 625/25 HD 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
| Reclocking | Yes |
| Multi-Rate Support | Auto detection of SD, HD, 2K, UHD, and 4K signals |
| Audio Input | 4 x 1/4" jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
| Weight | 7.61 oz (215.74 g) |
