BLACKMAGIC DESIGN Mini Converter SDI To Audio 4K (CONVMCSAUD4K)

Features of BLACKMAGIC DESIGN Converter SDI to Audio CONVMCSAUD4K

• De-Embeds Audio from SDI Signal
• Supports SD, HD, UHD 4K & DCI 4K Signals
• Redundant SDI Input
• 4 Analog or 8 AES/EBU Audio Channels
• Control via DIP Switches or Software
• Single Link 6G-SDI Input
• Automatic Input Signal Detection
• 4x 1/4″ Audio Output Jacks
• 24-Bit, 48 kHz Audio
• 12V Universal Power Supply Included

Product Info for BLACKMAGIC DESIGN Converter SDI to Audio CONVMCSAUD4K

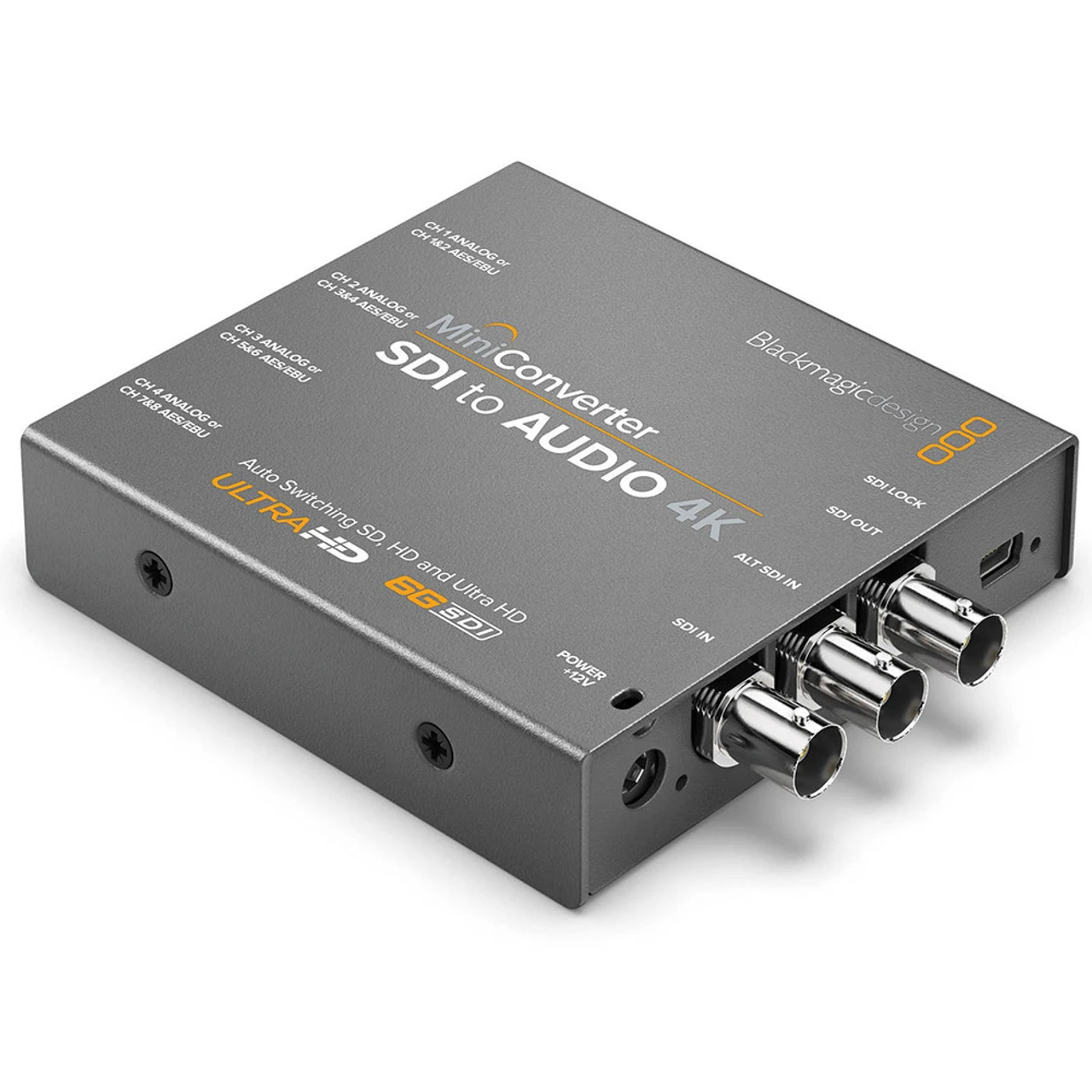

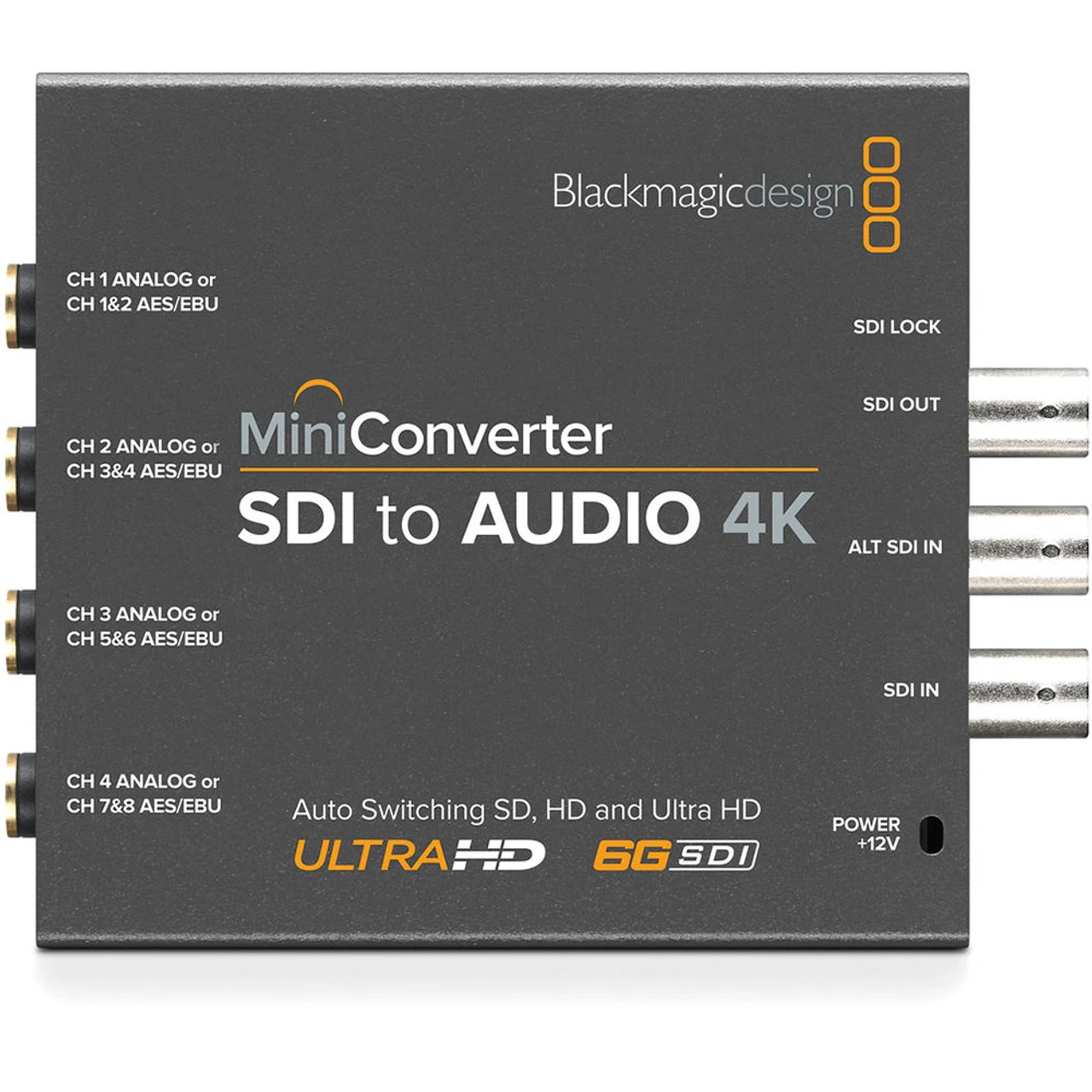

The Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840×2160) and DCI 4K (4096×2160), and provides four 1/4″ audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source.

Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

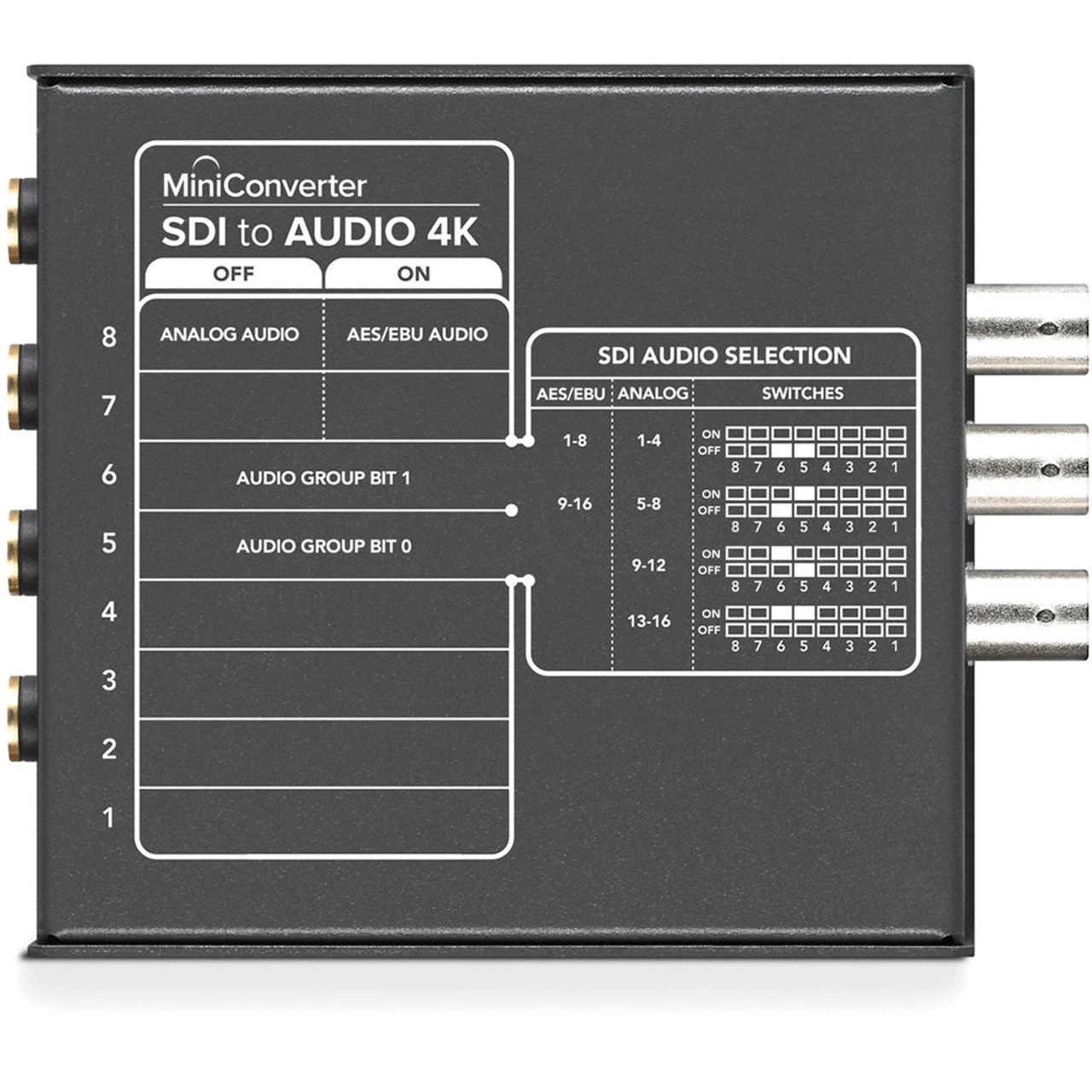

The Mini Converter’s settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.
